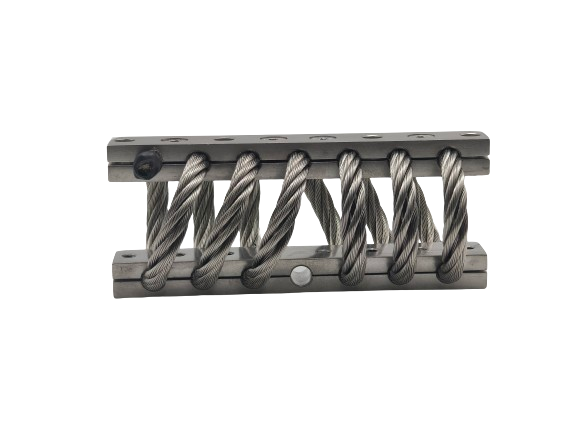

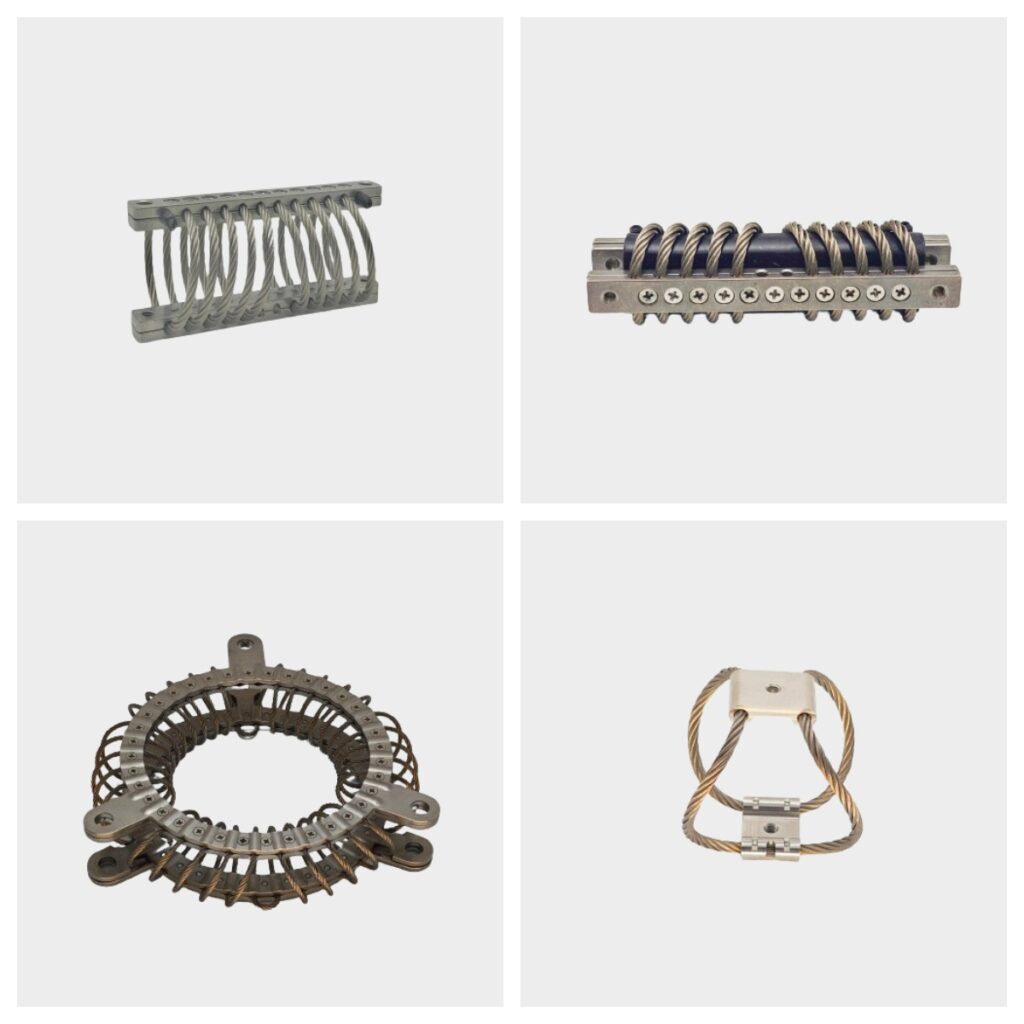

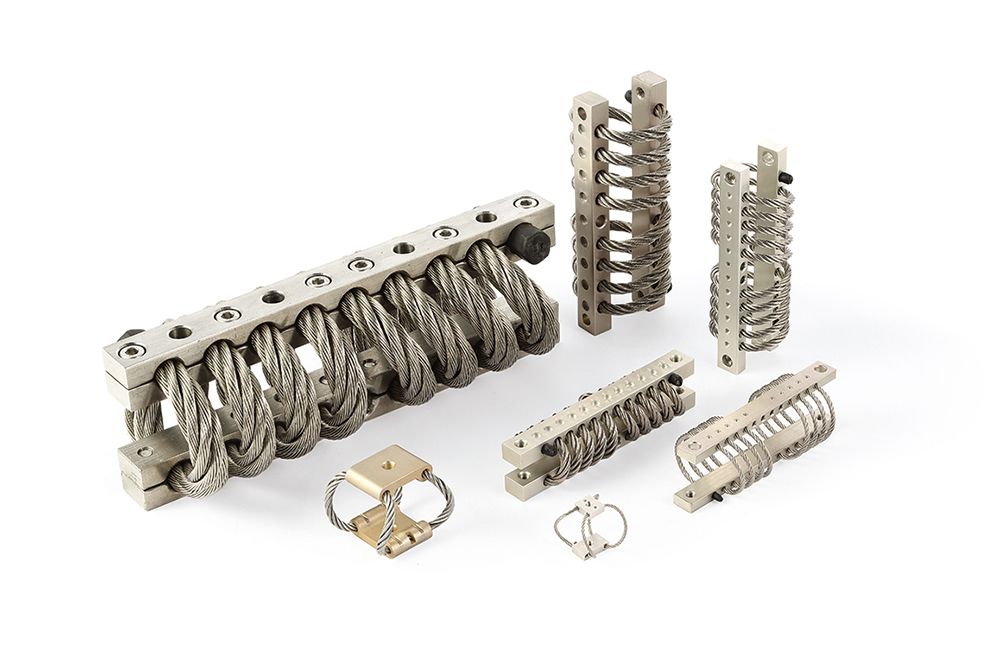

Wire Rope Isolator
Vibratac specializes in high-performance vibration isolators, designed to exceed industry standards. Our wire rope isolators, renowned for their superior multidirectional flexibility and impressive damping capabilities, are the go-to solution for reliable shock and vibration protection.
Built with durable metal construction, these isolators offer long-lasting performance, even in the toughest environments. Certified to meet military-grade specifications like MIL-STD-810, MIL-DTL-901E, and MIL-S-167, they ensure uncompromised quality and reliability in critical applications. Trust Vibratac to deliver the engineering excellence your projects demand.
Exceptional Advantages
- Sturdy all-metal design.
- Insulation and restraint in all orientations.
- Integrated shock and vibration isolation.
- Superior inherent damping performance.
- Wide temperature range, from -200 °C to 350 °C.
- Extended lifespan with no maintenance needed.
- Excellent durability against chemicals, seawater, ozone, radioactivity, and UV rays.
- Versatile mounting configurations.
- Largest selection of products in the industry, from 0.04” to 2” diameter wire rope.
- Highly adaptable options.

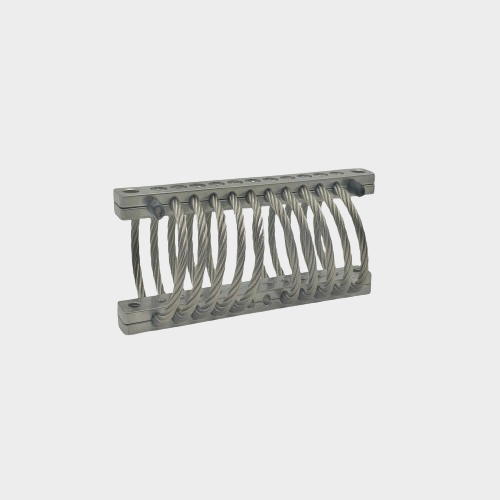

Multi-application Wire Rope Isolator
Our standard model are multidirectional wire rope isolators designed to safeguard sensitive equipment from intense shock and vibration during transport and handling.
Features:
- All-metal construction.
- Effective low-frequency isolation.
- Multidirectional performance.
- Exceptional reliability and long lifespan.
- Wide temperature tolerance: -200 °C to 350 °C.
- Damping ratio: 15-25% (equivalent to viscous damping).
Applications:
- Defense Industry
- Aerospace
- Nuclear
- Oil Research
- Railways
Patented Wire Rope Isolator
Our patented isolators, based on the standard model, feature improved side-direction efficiency, 100G impact resistance, and are ideal for military vehicles, precision equipment and etc.
Features:
- All-metal construction.
- 100G impact resistance.
- Effective low-frequency isolation.
- Multidirectional performance.
- Exceptional reliability and long lifespan.
- Wide temperature tolerance: -200 °C to 350 °C.
Application:
- Defence
- Aerospace
- Marine
- Industry

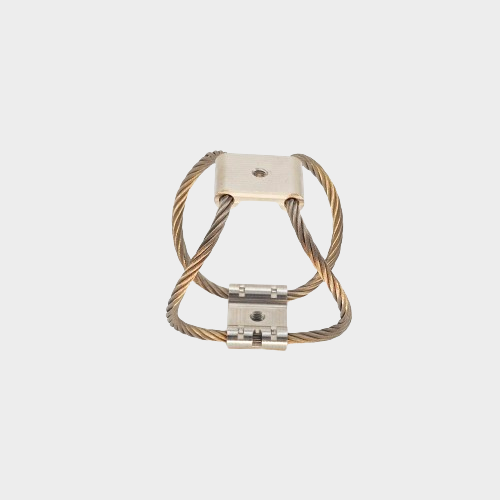

Compact Wire Rope Isolator
Features:
- Supports Heavy Static Loads
- Economical and Long-lasting
- Durable Metal Construction for Harsh Conditions
- Ideal for Protecting Sensitive Equipment
- Operates Efficiently in Temperatures from -100ºC to 260ºC
- Compact Design Enables Isolation of Individual Components
Applications:
- Defense
- Industry
- Aerospace
Built on Trust: Our Long-Term Partners
Table of Contents
Get Your Custom Quote Now
Why Are Wire Rope Isolators Essential ?
Vibration isolators are crucial components designed to reduce or eliminate vibrations and shocks that can damage equipment, affect precision, create noise, and compromise structural stability. Here’s why they are essential:
Protect Equipment
Vibration isolators safeguard machinery from damaging vibrations and shocks, enhancing performance and extending lifespan.
Improve Precision
For high-precision equipment, isolators minimize vibrations, ensuring accuracy and consistent operation.
Reduce Noise
By dampening vibrations, isolators significantly decrease noise levels, creating a quieter work environment.
Enhance Structural Safety
In construction, isolators protect buildings from seismic activity and other external forces, ensuring safety and stability.
How effective are wire rope isolators
at reducing vibration?
Vibration isolation is critical for safeguarding sensitive equipment across industries. Vibratac’s wire rope isolators excel in both performance and durability, ensuring optimal protection.
- Vibration reduction up to 98%
- Frequency range: 5-500 Hz
- Load capacity: 5 kg to several tons
For more insights, click on the case study video to experience Vibratac’s performance in action.

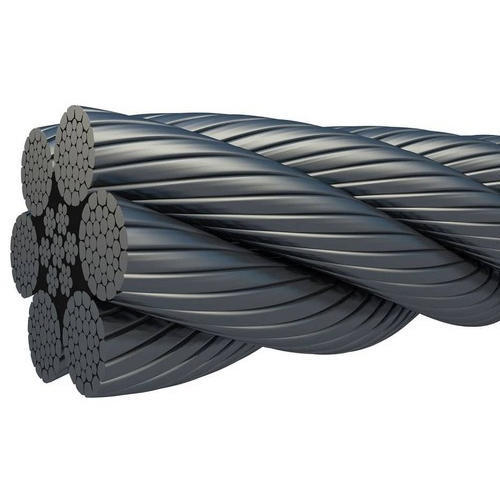

What materials are used in wire rope isolators?
Wire rope isolators are essential components in vibration control systems, providing durability and flexibility in extreme environments. These isolators are typically made from robust materials to ensure reliable performance.
- Wire Rope: 302/304 Stainless Steel
- Mount Bars: 6061-T6 Aluminum, Chemical Conversion Coated per MIL-DTL-5541, TYPE II, CLASS 1A: Non-hexavalent chromium
- Hardware: Alloy Steel, Zinc Plated
- Thread: Stainless Self Clinching Insert , Threaded Bar
- Wire Rope: Galvanized Stainless
- Mount Bars: 6061-T6 Aluminum, Anodized per MIL-A-8625, Type II, Class 1 302/304 Stainless Steel per ASTM A276, Passivated
- Hardware: 302/304 Stainless Steel (when stainless steel bars are specified)
- Threads: Stainless Steel Helical Inserts, Free Running or Self Locking Threaded Aluminum
Why Choose Wire Rope Isolators?
Wire rope isolators provide unparalleled performance in military applications, standing out for their resilience, adaptability, and longevity. Below is a comparison that highlights why they are the preferred choice for mission-critical environments.
Feature | Wire Rope Isolators | Other Isolators |
---|---|---|
Multi-Directional Vibration Control | Absorbs shocks from all directions, ideal for complex military environments. | Typically limited to one or two directions. |
Durability in Extreme Conditions | Resistant to high temperatures, humidity, and corrosion, ensuring reliable performance. | May degrade in harsh conditions, reducing effectiveness over time. |
Military Standard Compliance | Designed to meet MIL-STD requirements, guaranteeing defense-grade reliability. | Often lacks military-grade certification. |
Extended Lifespan | Built for long-term use with minimal maintenance, reducing downtime and costs. | Generally requires more frequent replacement and maintenance. |
Customizability | Available in multiple configurations to meet specific military needs. | Often limited in customization options. |
How to select wire rope isolator?
Selecting the proper wire rope isolator is critical for maximizing equipment performance and longevity. Here are four key factors to consider:
1. Load Capacity
Choose based on the weight of the equipment.
2. Vibration Frequency:
Match isolator frequency range to the equipment’s vibration characteristics.
3. Environmental Conditions:
Consider temperature, corrosion, and chemical exposure.
4. Space and Mounting:
Ensure isolator size fits the installation area.

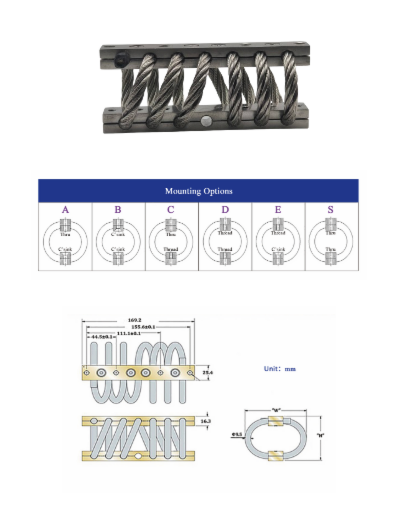

How to customize wire rope isolators?
Backed by 20 years of industry experience, we are leaders in crafting tailored wire rope isolators that deliver superior vibration control and reliability. We provide the best solutions, and typically require the following details to customize your isolator:
Vibration Frequency
Customize according to the frequency of vibration or shock the system will encounter, ensuring optimal isolation performance.
Environmental Conditions
Consider the operating environment, such as temperature, humidity, and exposure to corrosive materials, which may affect the isolator's materials and coating.
Cable Material and Configuration
Select appropriate wire rope materials (e.g., stainless steel for corrosion resistance) and customize the cable’s diameter and number of loops to control stiffness and flexibility.
Mounting Options
Customize mounting hardware (e.g., bolted or clamped) for easy installation and compatibility with the application.
Size and Shape
Information about the type of equipment, including its physical dimensions and weight, is required to ensure a perfect fit and optimal performance.
Load Capacity
Determine the maximum load the isolator needs to support, based on the weight of the equipment and dynamic forces.
How to customize wire rope isolators?
Backed by 20 years of industry experience, we are leaders in crafting tailored wire rope isolators that deliver superior vibration control and reliability. We provide the best solutions, and typically require the following details to customize your isolator:
Size and Shape
Determine the equipment’s type, physical dimensions, and weight.
Load Capacity
Determine the isolator’s maximum load capacity by considering the equipment’s weight and dynamic forces.
Vibration Frequency
Customize for vibration frequency to ensure optimal isolation performance.
Mounting Options
Customize mounting hardware, such as bolted or clamped options, for easy installation and application compatibility.
Environmental Conditions
Consider temperature, corrosion, and chemical exposure.
Cable Material and Configuration
Select suitable wire rope materials, like stainless steel, and customize cable diameter and loop count for stiffness control.
How to customize wire rope isolators?
Backed by 20 years of industry experience, we are leaders in crafting tailored wire rope isolators that deliver superior vibration control and reliability. We provide the best solutions, and typically require the following details to customize your isolator:
Size and Shape
Information about the type of equipment, including its physical dimensions and weight, is required to ensure a perfect fit and optimal performance.
Load Capacity
Determine the maximum load the isolator needs to support, based on the weight of the equipment and dynamic forces.
Vibration Frequency
Customize according to the frequency of vibration or shock the system will encounter, ensuring optimal isolation performance.
Environmental Conditions
Consider the operating environment, such as temperature, humidity, and exposure to corrosive materials, which may affect the isolator's materials and coating.
Cable Material and Configuration
Select appropriate wire rope materials (e.g., stainless steel for corrosion resistance) and customize the cable’s diameter and number of loops to control stiffness and flexibility.
Mounting Options
Customize mounting hardware (e.g., bolted or clamped) for easy installation and compatibility with the application.
What Maintenance Do Wire Rope Isolator Require?
Wire rope isolators require minimal maintenance due to their corrosion-resistant materials and robust design, offering up to 20+ years of reliable performance across military land, sea, and air operations.
Built for durability, wire rope isolators are crafted from stainless steel and high-strength alloys, eliminating the need for frequent upkeep. In ground applications, occasional inspections suffice to check for physical wear from terrain impacts. For naval environments, their corrosion resistance handles saltwater exposure with minimal intervention, ensuring stability for critical onboard systems. In aerospace, they require only periodic checks, even in high-altitude, high-vibration conditions. Studies show that with proper installation, wire rope isolators can last over two decades, ensuring continuous protection and reducing maintenance costs for mission-critical military assets.
Wire Rope Isolator Solutions in Action
Explore how VIBRATAC’s advanced vibration isolators excel in diverse industries and challenging environments. From safeguarding precision equipment in aerospace to ensuring stability in marine applications, our solutions are designed to optimize performance, reduce downtime, and meet the rigorous demands of modern industries. Discover the real-world impact of VIBRATAC’s innovative technology in action.
Why Choose Vibratac?
Vibratac is a recognized leader in the vibration isolation industry, offering more than just high-quality vibration isolators; we provide a partnership that drives your business forward. Our unwavering commitment to excellence and deep industry knowledge are the foundation of our service, ensuring your projects achieve optimal performance.
Proven Expertise
With over 29 years of experience, VIBRATAC is a trusted expert in shock and vibration control, providing solutions for thousands of satisfied clients across multiple industries.
Certified Quality
We are ISO 9001:2015 certified, ensuring our products meet the highest standards. Our entire team is dedicated to maintaining this certification and continuously improving our solutions.
Comprehensive Range
Offering 100+ types of vibration isolators, we cover industries ranging from defense to industrial machinery, ensuring that you find the perfect fit for your application.
Global Reach
With a presence in over 25 countries, across North America, Europe, Asia, and beyond, VIBRATAC provides global support while ensuring local service.
Direct Factory Pricing
Enjoy competitive pricing with 0% markup from middlemen. Our direct factory pricing ensures you get the best value for your investment.
Top-Quality Materials
We source materials from China’s top 3 suppliers, ensuring our products are made from the finest stainless steel, aluminum, and rubber for maximum durability and performance.
